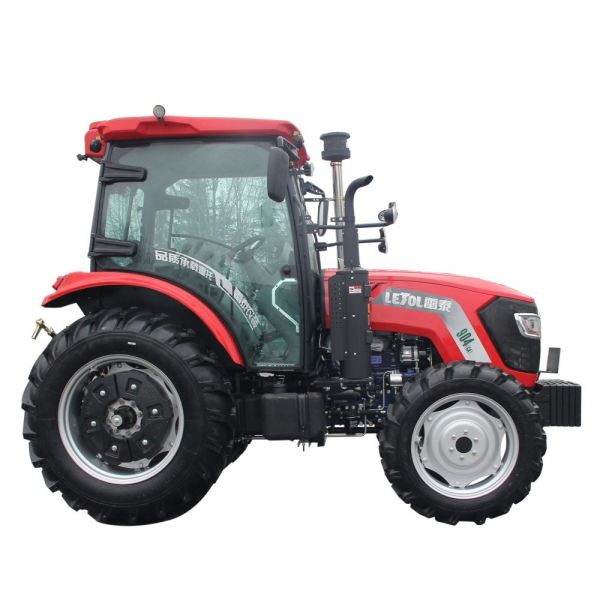

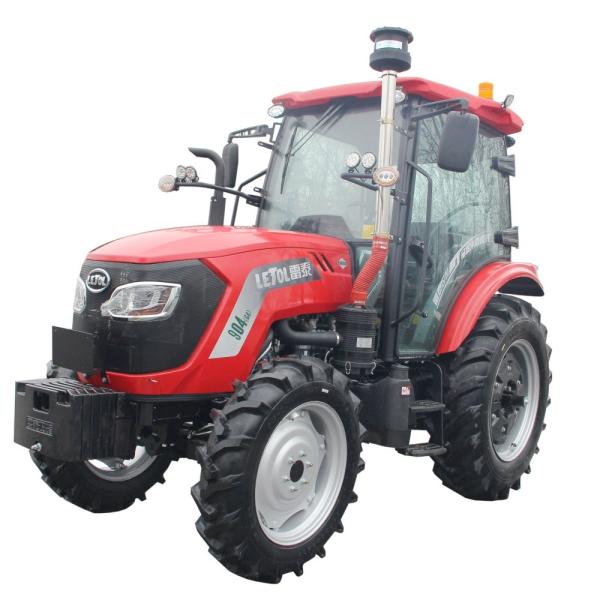

90HP Versatile Agriculture Tractor for Various Farming Applications
Product Description:
LT904tractor , 90HP,4WD, Dongfanghong or Yunnei engine,
air-conditioned cab,12 F + 12R synchronizer gearbox, Power output
shaft speed 540/760rpm or 540/100,Starting Method Electricity,LT series compact tractors have the characteristics of high
comfort, strong power, efficient work, and responsiveness, bringing
you a new experience of high efficiency, multi-function, strong
power, and comfortable operation.
Technical Parameters:
| 1 | Engine | Engine | Dongfanghong or Yunnei |
| Power | 90hp |
| Intake method | Turbocharging |
| Rated speed | 2400r/min |
| Number of cylinders | 4 |
| 2 | Transmission system | gearbox | 12F+12R |
| Synchronizer | ● |
| Main clutch | double acting clutch |
| PTO | mechanical control |
| Differential lock | mechanism |
| Power output shaft speed | 540/760rpm or 540/1000 |
| Power take-off spline | 8 or 6 keys |
| 3 | Front engine hood | New engine hood/red | ● |
| 4 | driving system | F/R adjustable steering | ● |
| Front axle (dry field) | ● |
| tire | 9.5-24/14.9-30 |
| Wheel color | silvery |
| Edge valve protection | ● |
| 5 | hydraulic system | Oil joint structure | ● |
| Dual auxiliary cylinder | ● |
| Hydraulic output | 2 groups |
| Hydraulic pump flow rate | 20L/min |
| category | Ⅱ |
| 6 | Counterweight | front | ● |
| back | ● |
| 7 | electrical system | Combination instrument panel (LCD screen, speedometer, tachometer,
water temperature, fuel gauge, timing gauge, oil pressure, etc.) | ● |
| Maintenance free battery | 120AH |
| LED Working Light | ● |
| Rotating warning light | ● |
| Rear license plate light | ● |
| 8 | tank | capacity | 120L |
| 9 | speed | maximum speed | 30.25KM/H |
| 10 | size | weight | 3200kg |
| Dimensions (length x width x height) | 4190x1790x2680mm |
| wheelbase | 2090mm |
| Track width | Front wheel 1300mm, rear wheel adjustable 1300mm-1400mm |
| Ground clearance | 370mm |
Detailed Photos:
Packing and Shipping:
Packaging and Shipping of Agricultural Tractor
The Agricultural Tractor will be carefully packaged to ensure its
safe arrival to our customers. Here is the packaging and shipping
process:
Packaging Process:
- The Agricultural Tractor will be wrapped in a protective layer to
prevent any scratches or damage during transportation.
- It will then be placed in a sturdy cardboard box with additional
padding to provide extra protection.
- The box will be sealed and labeled with the product name, model
number, and customer's address.
Shipping Process:
Once the Agricultural Tractor is packaged, it will be shipped using
a reliable and efficient shipping service.
FAQ:
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Weifang City,Shandong
Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation
support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:10-25 days according to the different quantity.
