BL35-12 china machine articulated front end backhoe loader high
quality new compact backhoe loaderprice backhoe
Product Description

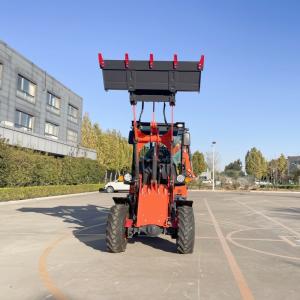

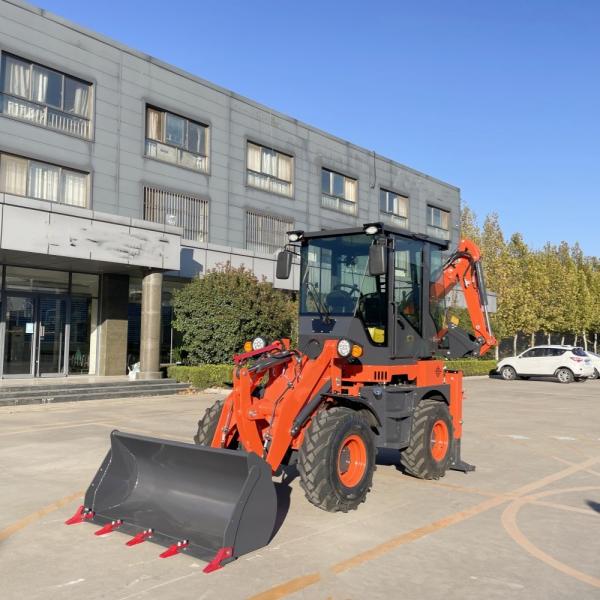

Wheel Loader JWBL35-12
1. Strong and stable structural components, thanks to the profile
of sufficient thickness.
2. With well-designed quick hitch, BL35-12 Backhoe Loader can be
installed with different attachments to meet your needs,easily
handling more work scenarios.
3. Clear and reasonable pipeline layout, providing easy
maintenance.
4. Offering a comfortable cab with wide view making operator
efficiency and rear lessen the risk of damage in tight work areas.
Product Parameters
| IDENTIFICATION | BRAND | JAWELL | MODEL | BL35-12 |
| TOTAL WEIGHT | 3450kg | DIMENSION | 5600*1680*2746 |
| RATED LOAD | 1200kg | BUCKET CAPACITY | 0.8m³ |
| BUCKET DUMPING HEIGHT | 2638mm | BUCKET DUMPING DISTANCE | 1030mm |
| BACKHOE CAPACITY | 0.2m³ | DIGGING DEPTH | 2630mm |
| BACKHOE SWING ANGLE | 170° | MAX. PULLING FORCE | 2t |
| MIN. GROUND CLEARANCE | 280mm | WHEEL BASE | 1775mm |
| MIN. TURNING RADIUS | 3000mm | STEERING ANGLE | 28° |
| ENGINE | MODEL | 490 | BRAND | XINCHAI |
| RATED OUTPUT | 37kw | RATED SPEED | 2650 r/min |
| DISPLACEMENT | 1.2 L | NO. OF CYLINDER | 4 |
| TRANSMISSION SYSTEM | CONVERTER MODEL | 265Y | GEARBOX PATTERN | HYDRAULIC |
| DRIVE MODEL | AUTO,4WD | PRESSURE | 18mpa |
| GEAR SHIFTS | 2 FORWARD, 2REVERSE |
| TYRE | QUANTITY | 2/2(F/R) | TYRE SIZE | 20.5/70-16 |
| AXLE | small hub reduction axle/ISUZU axle |
| BRAKE SYSTEM | Service brake | Vacuum assistance | Parking brake | Mechanical |
| STANDARD | quick change,electrical display,mechanical joystick,heater, rear
camera,warning lights,Radio |
| PACKAGE | 1 set in 1*20GP container, 4 sets in 1*40HQ container |
| REMARK | Please contact us to get more detailed specification sheet and
pictures. |
Product Details
Product Application
Product Accessories
Packing and Shipping
Packaging and Shipping for Backhoe Wheel Loader
When purchasing a Backhoe Wheel Loader, it is important to consider
the packaging and shipping process to ensure that your product
arrives safely and in good condition. Below are the steps involved in the packaging and shipping of a
Backhoe Wheel Loader:
Packaging: The Backhoe Wheel Loader will be carefully packaged in a
sturdy and secure crate to protect it during transportation. The crate will be made of strong materials to withstand any
potential damage during handling and shipping.
Protection: To further protect the Backhoe Wheel Loader, it will be
wrapped in heavy-duty plastic or bubble wrap to prevent any
scratches or dents during transit.
Labeling: The crate will be labeled with clear and visible
markings, including the product name, shipping address, and
handling instructions.
Shipping: The Backhoe Wheel Loader will be shipped via a reliable
and reputable transportation company that specializes in heavy
equipment transportation. The shipping method will depend on the
size and weight of the Backhoe Wheel Loader, as well as the destination.
Tracking: Once the Backhoe Wheel Loader has been shipped, you will
receive a tracking number to monitor its journey and estimated
delivery date.
Delivery: Upon arrival, the Backhoe Wheel Loader will be carefully
unloaded and delivered to your specified location. It is important to have a designated area prepared for delivery,
such as a flat and level surface, to ensure a smooth unloading
process.
By following these steps, we guarantee that your Backhoe Wheel
Loader will be packaged and shipped with the utmost care and
attention, so that it arrives at your doorstep in perfect
condition.
FAQ
1. Q: Are you manufactured by the original factory?
A: Yes.
2. Q: What is the delivery time?
A: Delivery should be made within 30 working days after receiving
the deposit.
3. Q: What payment terms are acceptable?
A: Usually, we accept a 30% advance payment by T/T and the rest 70%
which should be paid after the machine is completed.
4. Q: What is the transportation method?
A: Our products are mainly transported by sea and land.
5.Q: Why do you want to purchase from us instead of other
suppliers?
A: (1) We are a factory, reducing intermediary links and lowering
your procurement costs.
(2) We will continue to innovate, adopt new technologies, and
develop new products.
(3) Our products have been sold in multiple countries and regions,
covering Southeast Asia, Argentina, Peru, Chile, Europe, and the
U.S., and have been widely recognized in the market.
6. Q: What is the warranty period?
A: 12 months or 2000 working hours after shipment is okay.
7. Q: Do you accept customized products?
A: Yes, we accept customized products for loaders and excavators.
Such as color, size, replacement of spare parts, etc.
