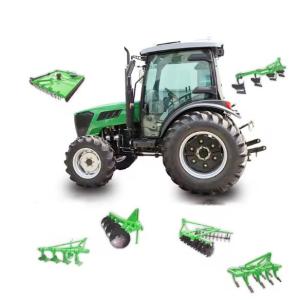

Hot Sale Price Farm Agriculture Tractors For Sale 4WD 50HP Small
Four Wheel Garden Tractor
Product Description:
50HP 4WD tractor ,TE504, YTO 50 horsepower engine, 8+8 gear shift ,
air conditioner cabin, two
speed PTO(540/720) six keys, non-strong pressure lifter, 3-point
suspension, independent PT0, 10-inch double-
acting clutch,6.5-16/11.2-24 tire；
AG504 tractor adopts yuchai Engine,8+8 side synchronizer shuttle
shift. It is an agricultural model developed for medium and small
farms. It is equipped with a high-torque four-cylinder engine, and
It is perfectly integrated, more efficient, and more
fuel-efficient. Simultaneously, it is equipped with a more robust
chassis and synchronizer gearbox, making the operation smoother and
bringing more robust durability and reliability. B series compact
tractors have the characteristics of high comfort, strong power,
efficient work, and responsiveness, bringing you a new experience
of high efficiency, multi-function, strong power, and comfortable
operation.
Technical Parameters:
Tractor
Parameters | Model | 504 |
|
| Drive Type | 4WD |
|
| Overall Dimensions L×W×H(mm): | 3180x1560x2600 |
|
|
| Wheel Track (mm) | Front | 1300/1400/1450 |
|
| Rear | 1300-1700 |
|
|
| Wheel Bass(mm) | 1800 |
|
| Ground Clearance (mm) | 308 |
|
| Rated Traction Force(N) | 9800 |
|
| Construction Mass(kg) | 2200 |
|
Theoretical Speed
(km/h) | Forward | 2.46—32.73 |
|
|
| Reverse | 2.15—28.69 |
|
Engine
Specifications | Model | 3E22YT51P504 |
|
| Type | 4-Cylinder Vertical,water cooled,4 stroke cycle |
|
|
| Rated Power(kw/hp) | 37/50 |
|
| Rated Speed (rpm) | 2400 |
|
| Bore×Stroke (mm) | 90×100 |
|
| Total Displacement(L) | 2.55 |
|
Drive
System | Clutch | 10" dual-stage |
|
| Gear Box | 8+8 |
|
Traveling
Mechanism | Tyre | Front | 6.5-16 |
|
| Rear | 11.2-24 |
|
| Steering Gear | Full Hydraulic Steering |
|
| Brake | Disc type |
|
Working
Device | Hydraulic System | Lifting Capacity at 610mm
Behind Lift Point (N) | 7800 |
|
|
|
| 3-Point Suspension | Category:I |
|
|
| P.T.O Shaft | Rotating
Speed (rpm) | 540/720 |
|
|
| Spline Size | 6-∮35Rectangular Spline |
|
|
|
Features:
Packing and Shipping:
Packaging and Shipping for Tractor
When purchasing a tractor, it is important to consider the
packaging and shipping process to ensure that your product arrives
safely and in good condition. Below are the steps involved in the
packaging and shipping of a tractor:
- Packaging: The tractor will be carefully packaged in a sturdy and secure
crate to protect it during transportation. The crate will be made
of strong materials to withstand any potential damage during
handling and shipping.
- Protection: To further protect the tractor, it will be wrapped in heavy-duty
plastic or bubble wrap to prevent any scratches or dents during
transit.
- Labeling: The crate will be labeled with clear and visible markings,
including the product name, shipping address, and handling
instructions.
- Shipping: The tractor will be shipped via a reliable and reputable
transportation company that specializes in heavy equipment
transportation. The shipping method will depend on the size and
weight of the tractor, as well as the destination.
- Tracking: Once the tractor has been shipped, you will receive a tracking
number to monitor its journey and estimated delivery date.
- Delivery: Upon arrival, the tractor will be carefully unloaded and delivered
to your specified location. It is important to have a designated
area prepared for delivery, such as a flat and level surface, to
ensure a smooth unloading process.
By following these steps, we guarantee that your tractor will be
packaged and shipped with the utmost care and attention, so that it
arrives at your doorstep in perfect condition.
