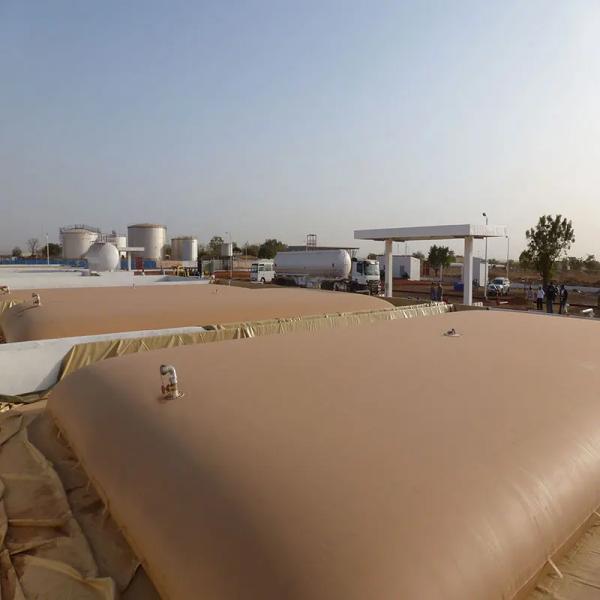

Big Oil storage tanks are the ideal solution for temporary or
permanent storage of dielectric oils. Flexible tanks are made of
technical fabrics coated with elastomers and are particularly
suitable for oil storage. These fabrics can also withstand extreme
weather conditions.
Model | Capacity | Thickness | weight | Size(L*W) | Packing size | Inlet and outlet valve size |
JWBY-500 | 500L | 0.7mm | 7.3kg | 2*1.1m | 0.4*0.4*0.3m | DN32(1-1/4”) |
JWBY-2000 | 2,000L | 0.8mm | 22kg | 3*2m | 0.5*0.4*0.3m | DN50(2”) |
JWBY-3000 | 3,000L | 0.8mm | 28kg | 3.7*2.2m | 0.5*0.4*0.4m | DN50(2”) |
JWBY-5000 | 5,000L | 0.9mm | 32kg | 4.6*3m | 0.7*0.5*0.4m | DN50(2”) |
JWBY-8000 | 8,000L | 0.9mm | 50kg | 5*3m | 1.1*0.57*0.3m | DN50(2”) |
JWBY-10000 | 10,000L | 1.0mm | 76kg | 5*4m | 1.1*0.57*0.3m | DN50(2”) |
JWBY-15000 | 15,000L | 1.0mm | 83kg | 6*4m | 1.1*0.57*0.3m | DN65(2-1/2”) |
JWBY-20000 | 20,000L | 1.0mm | 90kg | 6*5m | 1.1*0.67*0.5m | DN65(2-1/2”) |
JWBY-30000 | 30,000L | 1.0mm | 150kg | 8*6m | 1.1*0.7*0.6m | DN80(3”) |
Our fuel tank accessories are made of high-quality stainless steel
valve bodies to ensure that they will not be damaged or rusted
after long-term use.
Features:
- Product Name: Flexible Oil Tank
- Warranty: 1 Years
- Color: Blue, Green, Gray, Yellow
- Tear Resistance: High
- Shape: Rectangular/ Round/ Customized
- Durability: Not Less Than 8 Years
Customization:
Our products can be customized according to customer needs size or
capacityFAQ:
1. Q: What does your warranty cover?
A: 1 year quality warranty against manufacturing defects (material
or workmanship).
worn out parts are not covered under our warranty.
2. Q: What is goods lead time?
A: As the order quantity, our delivery time is 7- 35days. But it
will take a little longer if with heavy burden of production task.
3. Q: How can I get some samples?
A: We are honored to offer you samples. New clients are expected to
pay for the courier cost, the small samples are free for you, this
charge will be deducted from the payment for formal order.
4 .Q: How does your factory do regarding quality control?
A: Quality is priority! Every worker keeps the QC from the very
beginning to the very end:
a. All raw material we used are passed the strength test.
b. Skillful workers care every detail in sewing, printing,
stitching, packing process;
c. Quality control department specially responsible for quality
checking in each process.
5. Q: Can your factory print my logo on the goods?
A: Yes, we can print the customers’ logo on the goods or their
packing box.
We usually produce goods based on customer's samples or based on
customers' picture, logo, sizes etc detail information design for
customers.
